HDI 1 plus n plus 1 Circuit Board

Product Detail

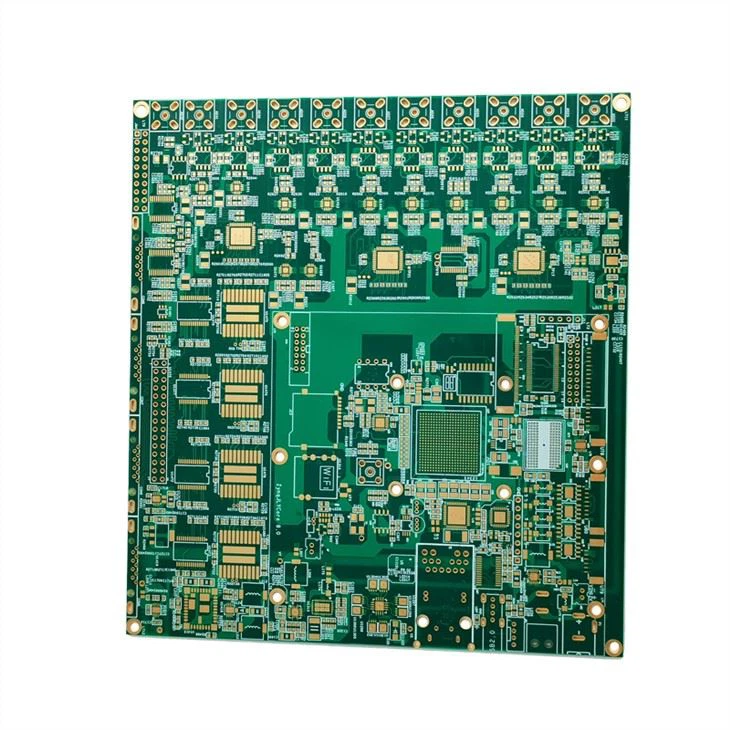

Raws li kev lag luam hluav taws xob txuas ntxiv hloov. Cov khoom siv hluav taws xob tau tsim los ntawm lub teeb, thinness, luv luv thiab miniaturization, thiab cov ntawv luam tawm sib xws kuj tau ntsib nrog cov kev cov nyom ntawm high precision, nyias kab thiab siab ceev. Qhov sib txawv ntawm Circuit Court boards nyob rau hauv lub ntiaj teb no kev ua lag luam yog qhia qhov muag tsis pom nyob rau hauv high-density interconnect khoom. Kev faus vias tuaj yeem txuag lub sijhawm zoo dua thiab ua rau txoj kab dav thiab kab sib nrug nyias thiab nqaim.

Txheej: 8

Khoom siv: FR4 High Tg

Thickness: 1.6 ± {2}}.10mm

Min.Hole Loj: 0.15mm

Yam tsawg kawg kab dav / Qhov Chaw: {{0}}.10mm / 0.10mm

Yam tsawg kawg nkaus Clearance ntawm Inner Layer PTH thiab Kab: 0.2mm

Loj: 225mm × 168mm

Kev kho saum npoo: ENIG

Tshwj xeeb: Laser ntawm tooj liab plated kaw, VIPPO Technology, faus qhov

Daim ntawv thov: Computer

HDI N plus n plus N Type

1 plus N plus 1

Hauv 1 ntxiv rau N ntxiv rau 1 stacking hom, "1" sawv cev rau ib ntu lamination ntawm ob sab ntawm cov tub ntxhais. Lub lamination txuas ntxiv ntxiv ob txheej tooj liab rau tag nrho N ntxiv 2 txheej. Sab saum toj txheej muaj ib lub laminate ntxiv uas tso cai rau lub qhov rau pawg. Cov qauv no yog tsim rau BGAs uas tsis tshua muaj input / tso zis suav, thiab nws cov kev ruaj ntseg installation yog qhov zoo.

2 plus N + 2

Tam sim no, tshuaj xyuas 2 ntxiv rau N ntxiv 2 pawg qhia saum toj no. Cov qauv no muaj 2 txheej ntawm high-density interconnects thiab yog haum rau BGAs nrog me me pitches thiab ntau dua I / O suav. Cov qauv tsim no siv tooj liab los sau cov staggered lossis stacked microvias, feem ntau yog siv rau hauv cov ntawv teev npe siab.

Txhua txheej

Txhua txheej txheej yog lwm txoj hauv kev siv hauv HDI tsim. Txhua Txheej PCB yog qib tom ntej kev nce qib hauv HDI PCB tsim, ua raws li Class VI HDI tus qauv. Txhua txheej txheej txheej txheem tuaj yeem siv rau kev sib txuas hauv qib siab, vim tias txhua txheej txheej microvia pub dawb rau kev sib tshuam.

Hauv cov qauv no, cov txheej txheem microporous yog siv los ua cov txheej txheem rov ua dua tshiab hauv prepreg, lossis lawv tuaj yeem hais tias ntab hauv prepreg. Microvias nyob rau hauv ib txheej yog thawj tsim tom qab cov txheej txheem ntawm drilling, filling, electroplating, luam ntawv, etching thiab lamination. Tom qab ntawd, lwm cov khaubncaws sab nraud povtseg rau saum cov khaubncaws sab nraud povtseg tom qab tib txoj kev.

Kev siv ntawm HDI

Thaum tsim hluav taws xob tas li txhim kho kev ua tau zoo ntawm tag nrho lub tshuab, nws kuj tseem sim txo nws qhov loj. Hauv cov khoom lag luam me me los ntawm cov xov tooj ntawm tes mus rau cov riam phom ntse, "me" yog kev nrhiav mus ib txhis. High Density Integration (HDI) thev naus laus zis ua rau ntau qhov me me ntawm cov khoom tsim khoom kawg thaum ua tau raws cov qauv siab dua rau kev ua haujlwm hluav taws xob thiab kev ua haujlwm zoo. HDI tau siv dav hauv cov xov tooj ntawm tes, digital (lub koob yees duab) koob yees duab, khoos phis tawj phau ntawv, automotive electronics thiab lwm yam khoom siv digital, ntawm cov xov tooj ntawm tes yog siv ntau tshaj plaws. HDI boards feem ntau yog tsim los ntawm txoj kev tsim. Ordinary HDI boards yog ib qho kev tsim ib zaug, thiab high-end HDI siv ob los yog ntau tshaj cov thev naus laus zis, thaum siv cov thev naus laus zis PCB xws li stacking, electroplating, thiab laser direct drilling. High-end HDI boards yog siv nyob rau hauv 5G mobile xov tooj, advanced cov koob yees duab, IC cab kuj boards, thiab lwm yam.

Beton FAQ

Q1. Dab tsi yog qhov xav tau rau kev hais lus?

1.Gerber cov ntaub ntawv & Bom npe.

2.Clear pics ntawm pcba lossis pcba qauv rau peb.

3.Test method for PCBA.

Q2. Kuv cov ntaub ntawv puas muaj kev nyab xeeb?

Koj cov ntaub ntawv tau tuav hauv kev nyab xeeb thiab ruaj ntseg. Peb tiv thaiv cov cuab yeej kev txawj ntse rau peb cov neeg siv khoom yeej tsis koom nrog lwm tus neeg sab nrauv.

Q3.MOQ?

Tsis muaj MOQ. Peb muaj peev xwm lis me me thiab loj ntim ntau lawm nrog yooj.

Q4. Tus nqi thauj khoom?

Tus nqi thauj khoom yog txiav txim siab los ntawm qhov chaw, qhov hnyav, ntim qhov loj ntawm cov khoom. Thov qhia rau peb paub yog tias koj xav tau peb los hais koj cov freight.

Q5. Koj tuaj yeem ua kom ntseeg tau qhov zoo ntawm PCBs?

Peb cov PCBs yog 100 feem pua ​​kev xeem suav nrog Flying Probe Test, E-test thiab AOI.
